Manual Grout Pump

Manual Grout Pump

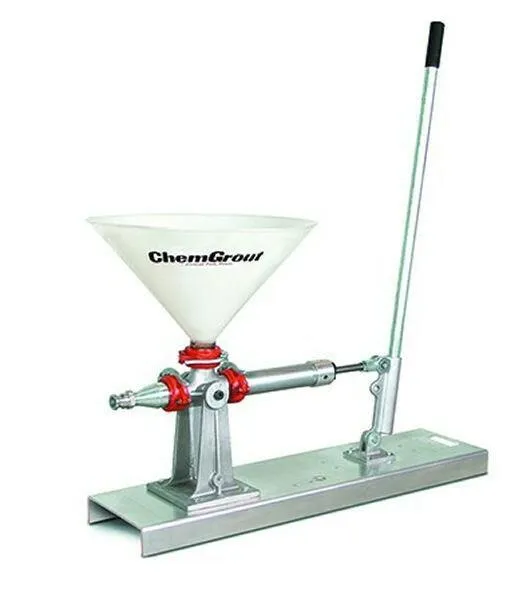

a portable, skid mounted, hand operated grout pump. The lightweight aluminum design makes this grout pump perfect for smaller jobs. This unit features a 5 gallon holding hopper and a piston pump. The holding hopper is connected directly to the suction of the pump for a continuous pumping operation.

The grout pump is a 2″ positive displacement manually powered pulsating piston pump. The system disassembles without any tools for a fast and efficient cleaning. The pump comes complete and ready to use with a free 12.5 foot grout hose and a set of spare piston cups.

Hose Size: 12' 6" long.
Output Capacity: 2 to 3 GPM.
Maximum Output Pressure: 200 psi.
Hopper Capacity: 5 gallons.
Single 2" piston pump.
Vertical Lift Limit: 10'.
Designed for small to medium grout jobs.
For use with high viscous slurries and most pre-packaged grouts.
